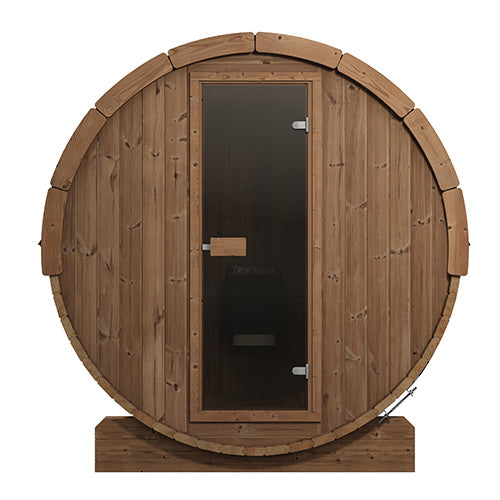

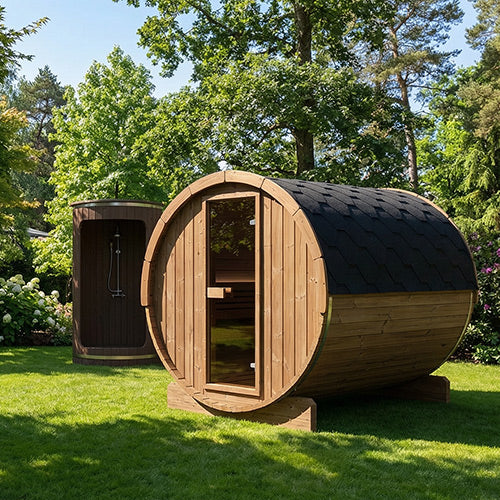

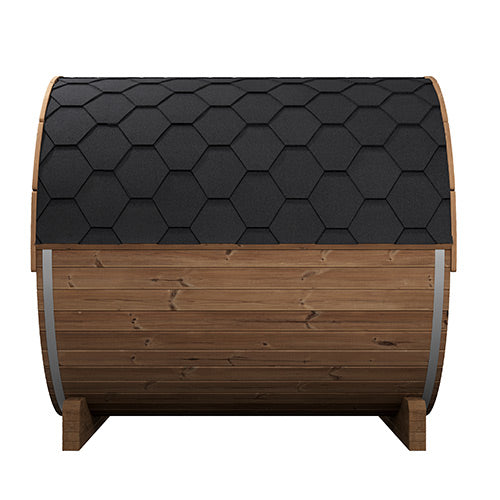

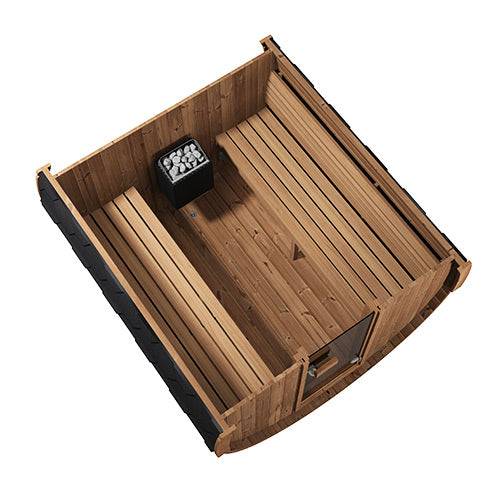

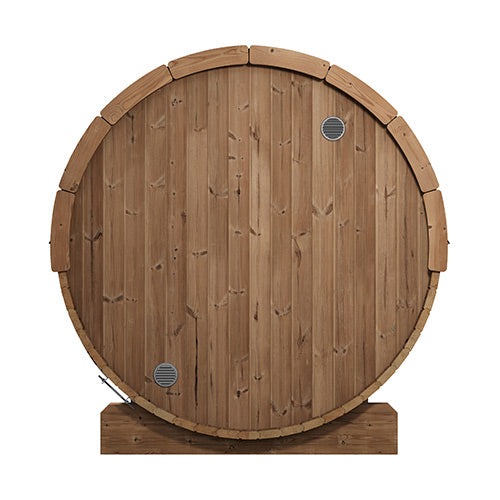

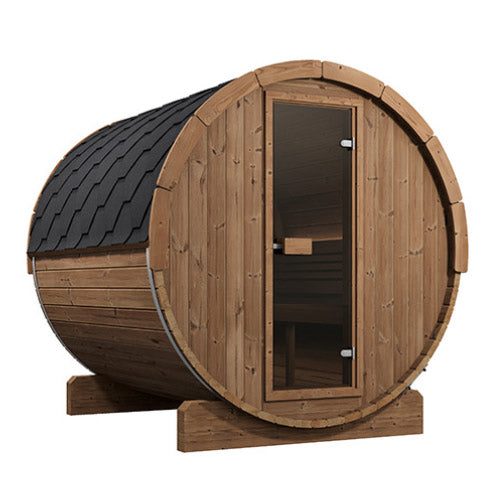

SaunaLife Model E8 Ergo Outdoor Barrel Sauna Kit | 6-Person | Thermo-Spruce

Key Features

• Accommodates up to six bathers
• Extended 78.7-inch interior depth
• Spacious 6-foot-5-inch interior height
• Full-length 1.65-inch-thick Thermo-Spruce staves
• Thermo-Spruce is chemical-free, dimensionally stable, and designed for outdoor sauna use
• Curved, knot-free Thermo-Aspen benches
• Arched Thermo-Aspen backrests for lumbar support
• Dual floor drains for water management
• Black shingle roof kit with rainwater-management edges
• Heavy-duty AISI 430 stainless-steel barrel bands
• Tempered bronze glass entrance door
• Intake and exhaust ventilation
• Included sauna heater guard
• Designed for straightforward DIY assembly
• Designed by SaunaLife and handcrafted in Northern Europe

Sauna Kit Includes

• Full-length Thermo-Spruce staves, 1.65 inches thick
• Thermo-Aspen benches with 1.1-inch-thick, knot-free tops
• Thermo-Aspen backrests, approximately 1.1 inches thick
• Tempered bronze glass door
• Stainless-steel barrel bands
• Black roof shingle kit
• Spruce support cradles
• Spruce fascia boards
• Air intake and exhaust vents
• Sauna heater guard
• Two additional Thermo-Spruce staves
• Fastener kit
• 16.9-ounce bottle of paraffin oil
• Installation instructions

White LED Lighting System Includes

• Two dotless white LED lights
• Wi-Fi and app-based operation
• Wireless handheld remote and mounting cradle
• 90-watt power supply
• LED driver
• 30-foot light cable
• Mounting clips and screws
• Lighting installation instructions

Optional E SCONCE+ exterior lighting and E MOOD color-lighting packages are available separately.

Not Included Unless Added as Part of a Package

• Sauna heater
• Sauna stones
• Heater controls, sensors, or contactor box
• Electrical installation
• Foundation or site preparation
• Exterior stain, finish, or sealant

• Manufacturer: SaunaLife
• Model: E8
• Series: Ergo-Series
• Installation: Outdoor
• Sauna Type: Barrel sauna
• Capacity: Up to 6 persons
• Primary Material: Thermo-Spruce
• Bench and Backrest Material: Knot-free Thermo-Aspen
• Exterior Dimensions: 80.7"W × 86.6"D × 84.6"H
• Interior Dimensions: 77.2" diameter × 78.7"D
• Interior Standing Height: Approximately 6'5"
• Door Dimensions: 23.2"W × 66.5"H
• Door Material: Tempered bronze glass
• Door Glass Thickness: 8mm, approximately 5/16"
• Wall Stave Thickness: 1.65"
• Bench and Backrest Thickness: Approximately 1.1"
• Bench Depth: Approximately 17.8"
• Barrel Bands: AISI 430 stainless steel
• Band Dimensions: Approximately 1-7/8"W × 1/8" thick
• Roof: Black asphalt shingle kit
• Product Weight: 1,345 lbs (610.1 kg)
• Shipping Weight: 1,445 lbs (655.4 kg)
• Packaged Dimensions: 88"W × 44"D × 43"H
• LED Operating Voltage: 24V DC
• LED Power Supply: 90W
• Country of Manufacture: Handcrafted in Northern Europe

Compatible Sauna Heaters

The E8’s recommended heaters include:

• Saunum: Air 7 and Air Perfect 7
• Harvia: The Wall SW80, The Wall SWS80, Spirit SP80E, KIP80B, and KIP80W
• HUUM: DROP 6 and HIVE Mini 6
• IKI: Pillar 6.6B and Pillar 6.6

Heater recommendations vary between brands because manufacturers use different room-volume calculations, stone capacities, airflow systems, and control configurations. Use only a heater or complete sauna package approved for the E8.

Electrical Requirements

• The sauna heater requires a dedicated 240V electrical circuit in most residential installations.
• Breaker size, conductor size, disconnect requirements, and control wiring depend on the selected heater.
• Certain heaters include built-in controls, while others require a separate controller, temperature sensor, contactor box, or Wi-Fi control module.
• Saunum heaters require additional brand-specific connections for the controller, sensor, and air-circulation system.
• The included LED lighting requires access to a properly protected 120V AC receptacle for its 90W low-voltage power supply.
• All heater and lighting connections must follow the selected manufacturer’s instructions and applicable electrical codes.

A licensed electrician must determine the final circuit, breaker, conductor, grounding, disconnect, GFCI, and control requirements before installation.

Site Requirements

• Install on a flat, level, stable, and well-drained base.
• The base must support the 1,345-pound sauna plus the heater, stones, occupants, and accessories.
• Suitable bases may include a reinforced concrete pad, properly constructed deck, pavers, or another continuous load-bearing platform.
• Maintain all heater clearances specified by the selected heater manufacturer.
• Plan an appropriate discharge location for the sauna’s dual floor drains.
• Maintain access for assembly, electrical service, drainage, ventilation, and future maintenance.
• Keep vegetation, sprinklers, standing water, and combustible materials away from the sauna.
• Install the included heater guard only after confirming the heater’s required position and safety clearances.

The SaunaLife E8 ships by LTL freight because of its size and weight.

• Shipping Weight: Approximately 1,445 lbs
• Packaged Dimensions: Approximately 88"W × 44"D × 43"H
• Delivery Type: Curbside freight delivery unless another service is arranged
• Delivery Appointment: The freight carrier will generally contact the recipient to schedule delivery
• Property Access: The delivery address must be accessible to a full-size freight truck

Inspect the shipment before signing the delivery receipt. Photograph the pallet and packaging, and note any visible damage, punctures, crushing, broken glass, missing pieces, or shortages on the carrier’s bill of lading. Contact Core Human Health promptly if damage or missing components are discovered.

SaunaLife describes the E8 as suitable for approximately one day of assembly by two capable adults. Actual assembly time varies based on experience, site conditions, weather, electrical preparation, and available assistance. Because of the E8’s extended length and heavy components, additional assistance or professional installation may be helpful.

Foundation construction, unloading beyond curbside service, movement to the final installation location, electrical work, heater installation, permits, and exterior finishing are not included unless specifically stated in the order.

Manufacturer Warranty

The SaunaLife E8 is covered by SaunaLife’s current two-year limited residential warranty against defects in workmanship under normal conditions of use. Coverage applies to the original retail purchaser when purchased from an authorized reseller.

The warranty does not generally cover normal wear, natural wood characteristics, weathering, discoloration, improper assembly, commercial use, misuse, unauthorized modifications, or damage caused by incorrect maintenance. Installation, removal, delivery, and reinstallation labor are not covered. The sauna heater, controls, lighting upgrades, and other separately manufactured components may carry their own warranties.

Returns

Return requests must generally be submitted within 30 calendar days of purchase. The sauna must be new, unused, uninstalled, and retained in its original packaging with the pallet, manuals, hardware, and all included components.

Prior written approval and a Return Authorization number are required. The customer is responsible for return freight charges on buyer-remorse returns. Repackaging or reboxing fees may apply when the original packaging is incomplete.

Contact Core Human Health immediately regarding freight damage, missing components, an incorrect shipment, warranty concerns, or cancellation requests. Final eligibility is subject to the complete Core Human Health Return, Refund & Cancellation Policy and SaunaLife manufacturer warranty terms.

Product Documents

• E8 Installation Manual
• SaunaLife Care Guide
• SaunaLife Limited Warranty

Care Guidelines

• Apply the included paraffin oil to the benches and backrests according to SaunaLife’s care instructions.
• Wipe seating and interior wood with a clean, damp cloth after use as needed.
• Allow the sauna to ventilate and dry thoroughly after each bathing session.
• Keep both floor drains clean and unobstructed.
• Use only clean water on sauna stones unless the heater manufacturer approves another product.
• Do not clean the sauna interior with a pressure washer or running hose.
• Use only sauna-safe cleaners and avoid harsh chemicals, bleach, ammonia, or abrasive products.
• Clean the glass door with a soft cloth and non-abrasive glass cleaner.
• Inspect the roof shingles, drip edges, barrel bands, door hinges, benches, vents, fasteners, and heater guard regularly.
• Check and rearrange sauna stones periodically, replacing cracked or deteriorated stones as directed by the heater manufacturer.
• Natural checking, grain variation, knots, and gradual color changes are normal characteristics of real wood and are not necessarily defects.
