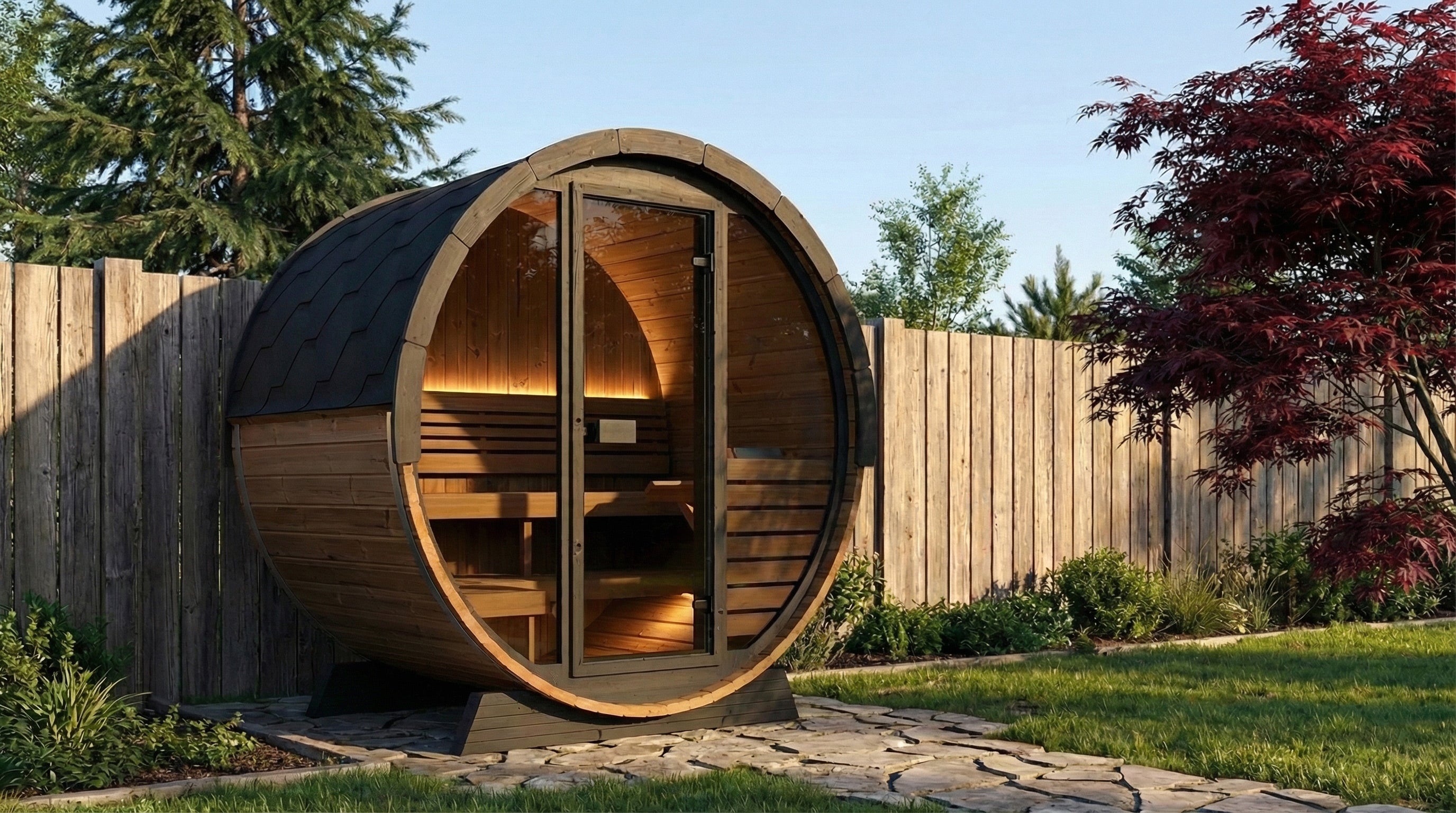

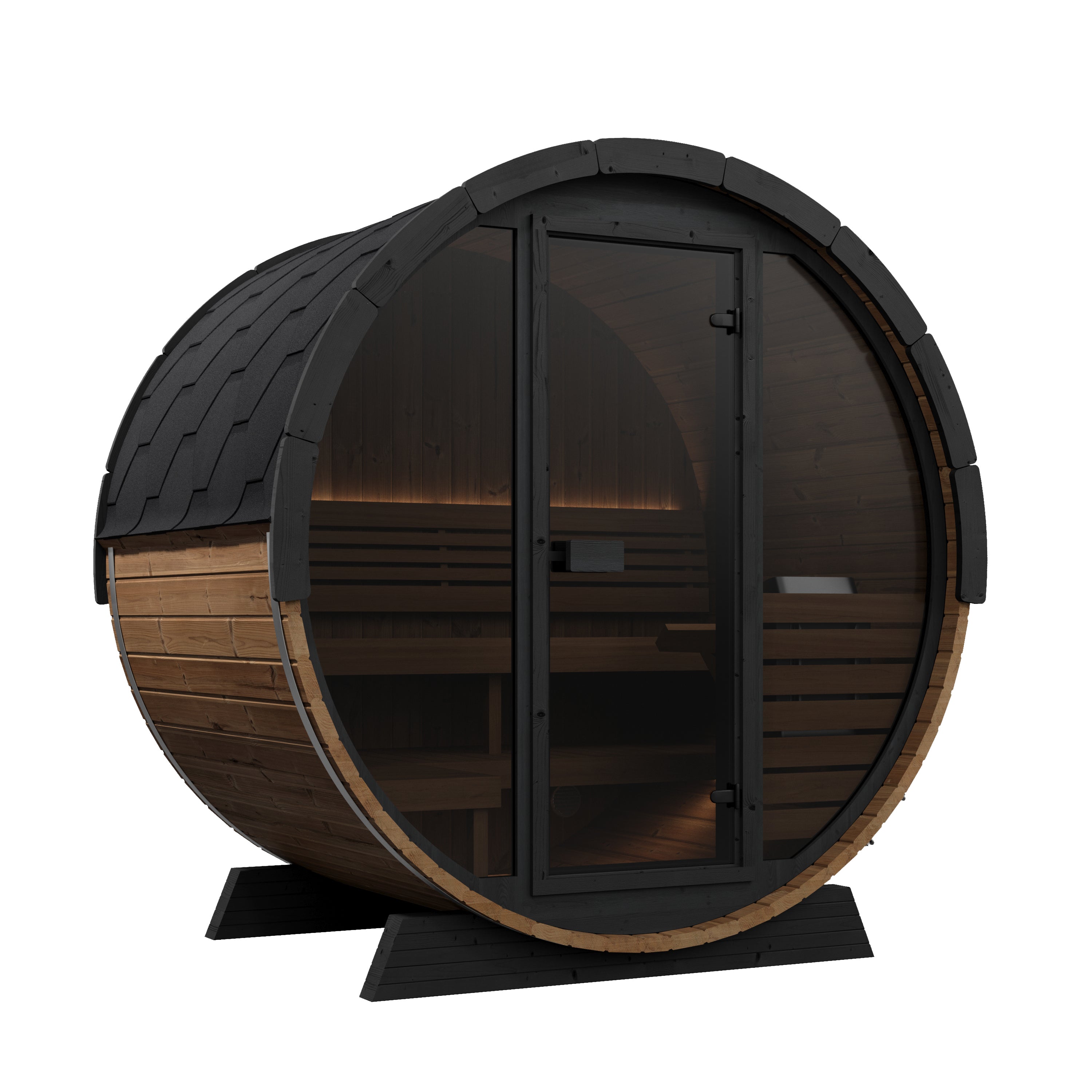

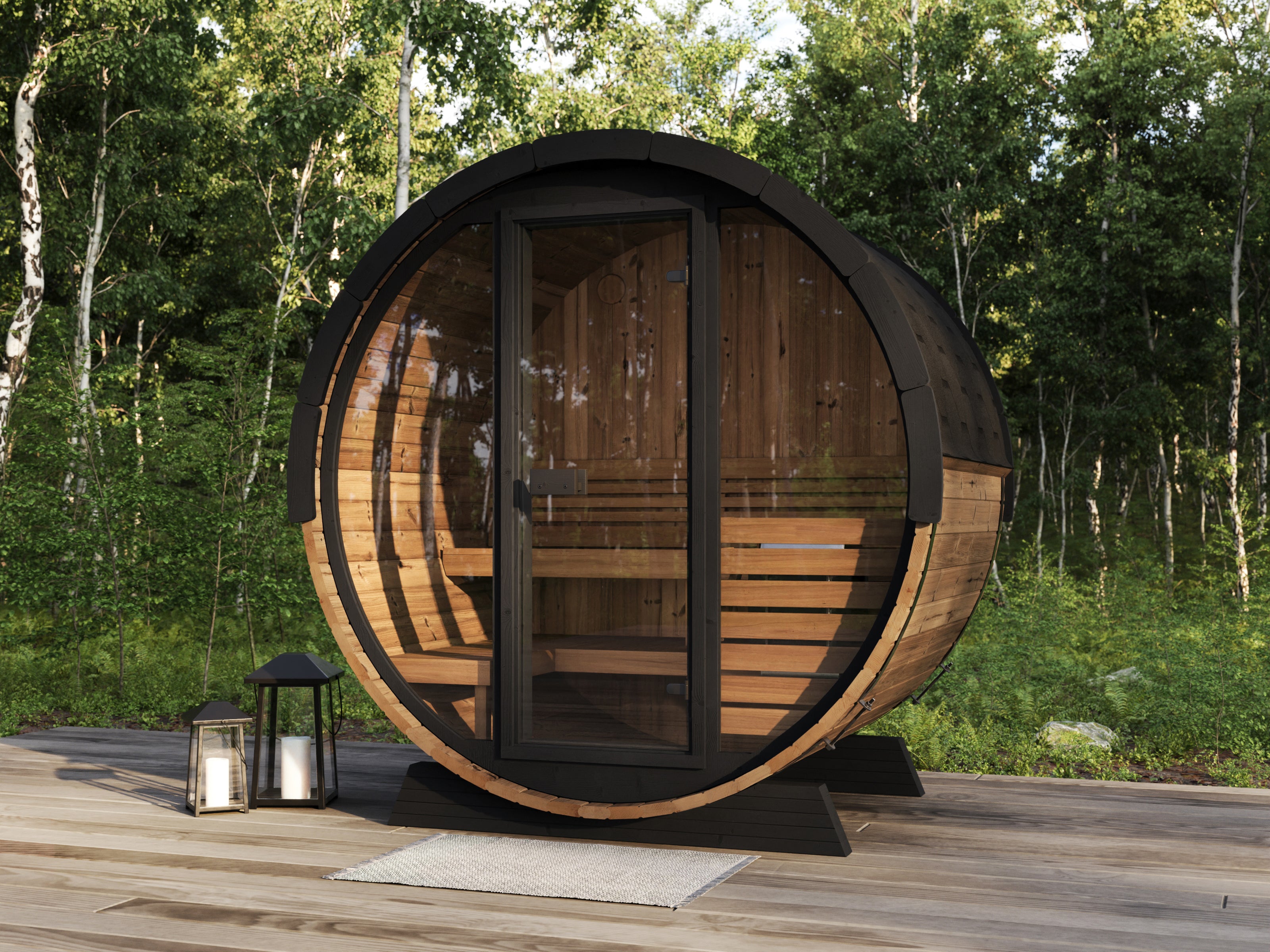

SaunaLife Model EE6G Ergo Elegance Outdoor Barrel Sauna Kit | 4-Person | Full Glass Front | 7'3" Diameter

Key Features

• Accommodates up to four bathers
• Expansive 7-foot-3-inch interior diameter
• 8mm bronze-tinted tempered-glass front wall

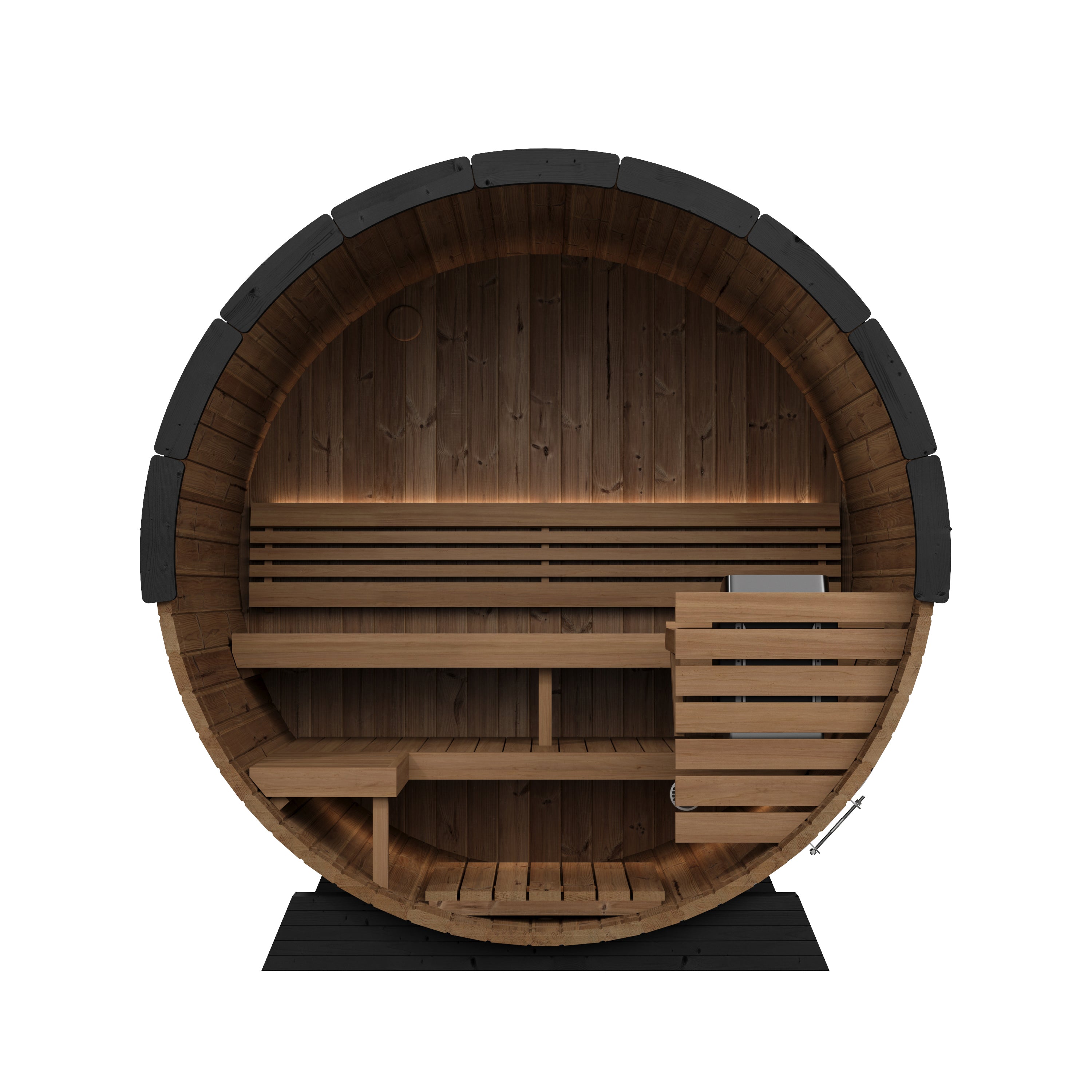

• Elevated seating position with lower footrest
• Contoured Thermo-Aspen bench for improved comfort
• Arched Thermo-Aspen backrest for lumbar support
• Full-length 1.65-inch-thick Thermo-Spruce staves
• Thermo-Spruce is chemical-free, dimensionally stable, and designed for outdoor use

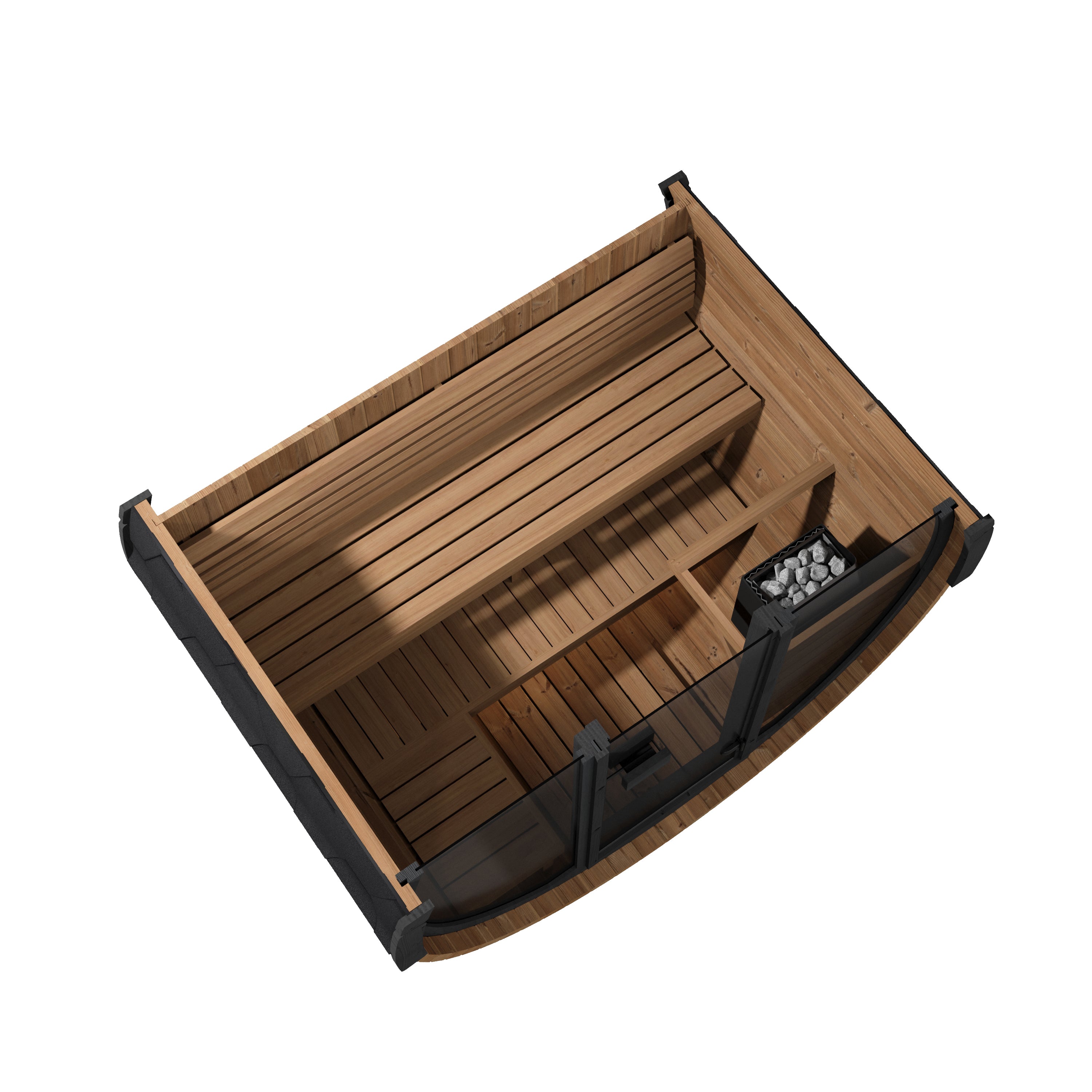

• Integrated fitted floor
• Dual floor drains for water management

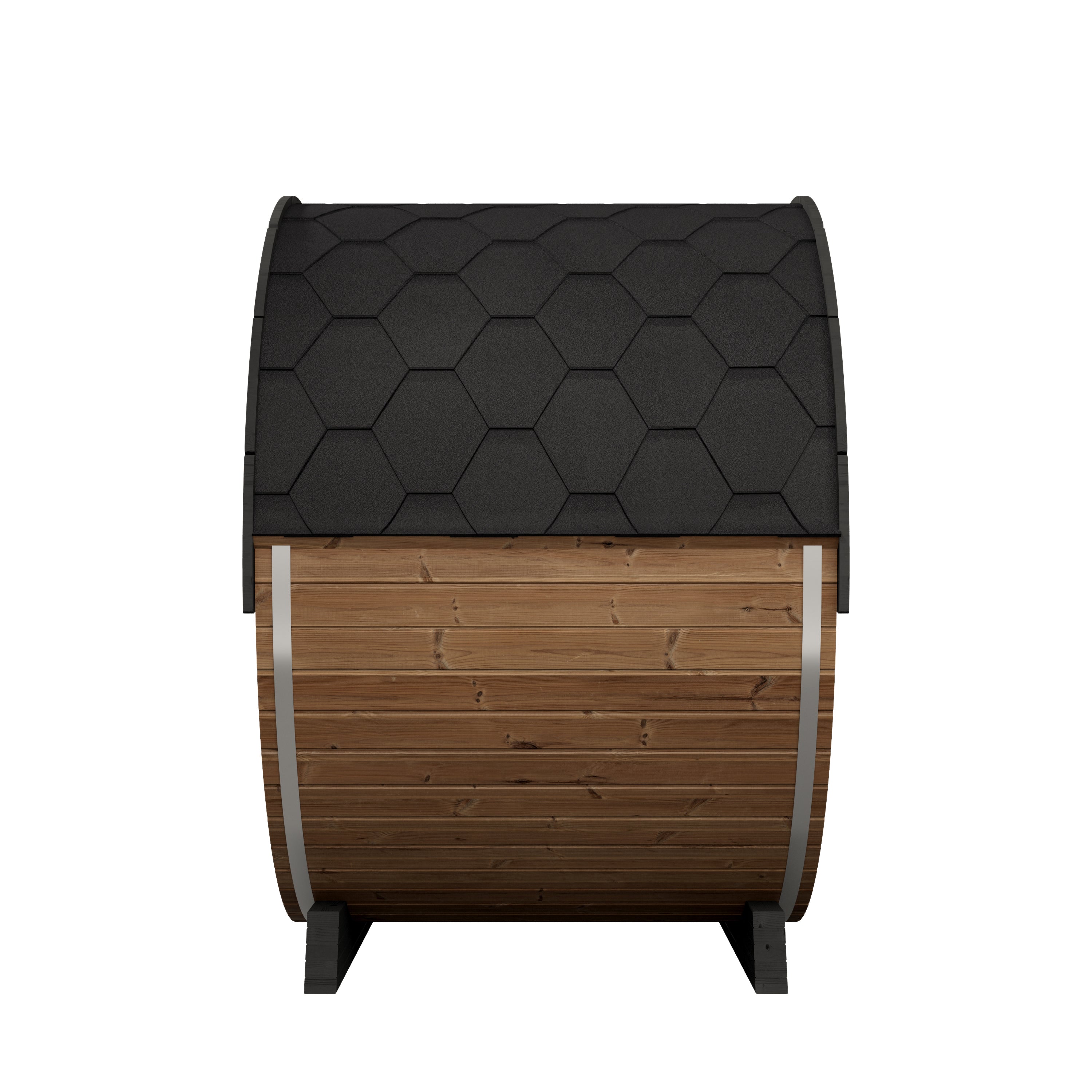

• Black shingle roof kit with rainwater-management rails
• Black-painted spruce cradles, fascia boards, and front frame
• Heavy-duty AISI 430 stainless-steel barrel bands

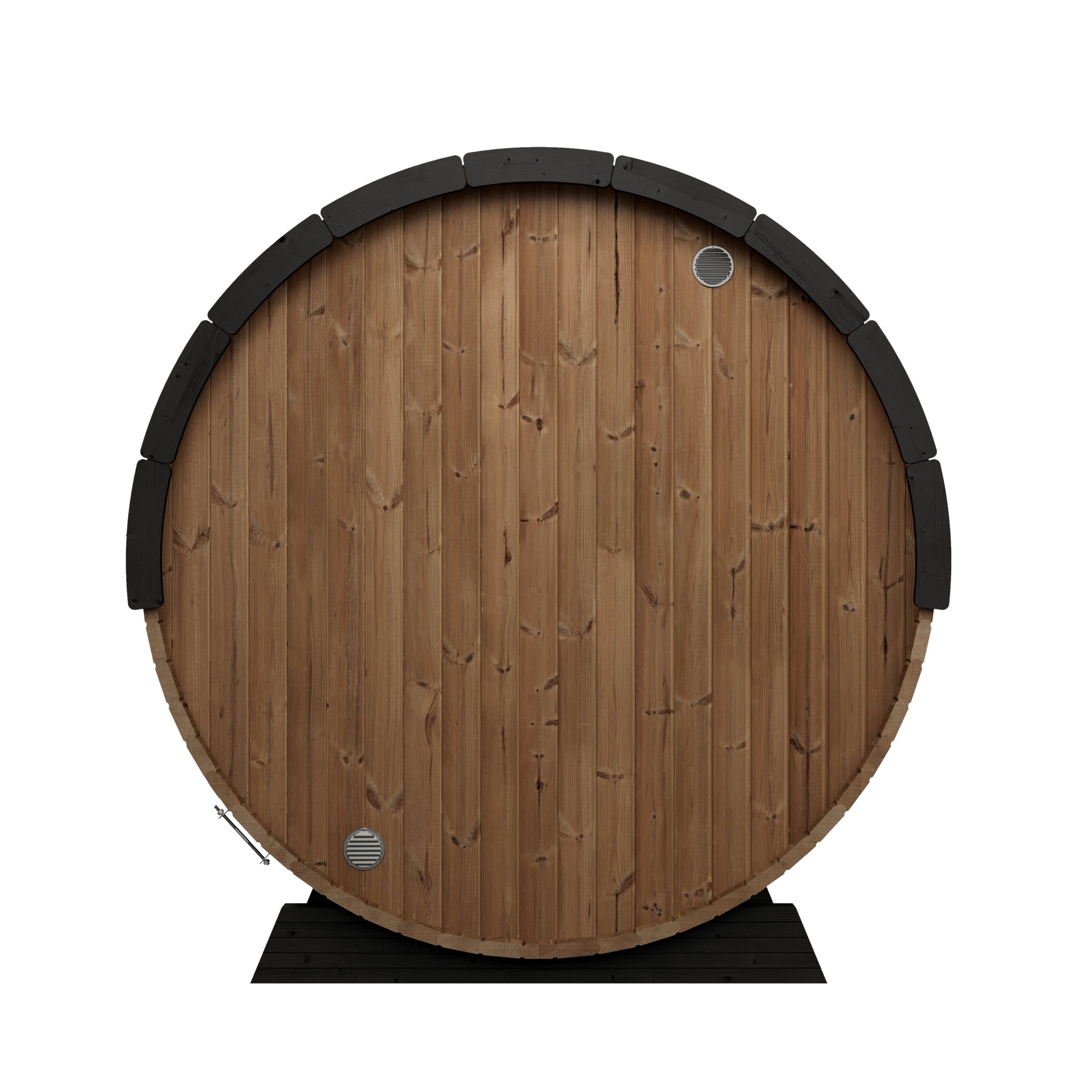

• Intake and exhaust ventilation
• Included sauna heater guard
• Designed for straightforward DIY assembly
• Designed by SaunaLife and handcrafted in Northern Europe

Sauna Kit Includes

• Full-length Thermo-Spruce staves, 1.65 inches thick
• Thermo-Aspen bench components with 1.1-inch-thick, knot-free tops
• Thermo-Aspen backrest components, approximately 1.1 inches thick

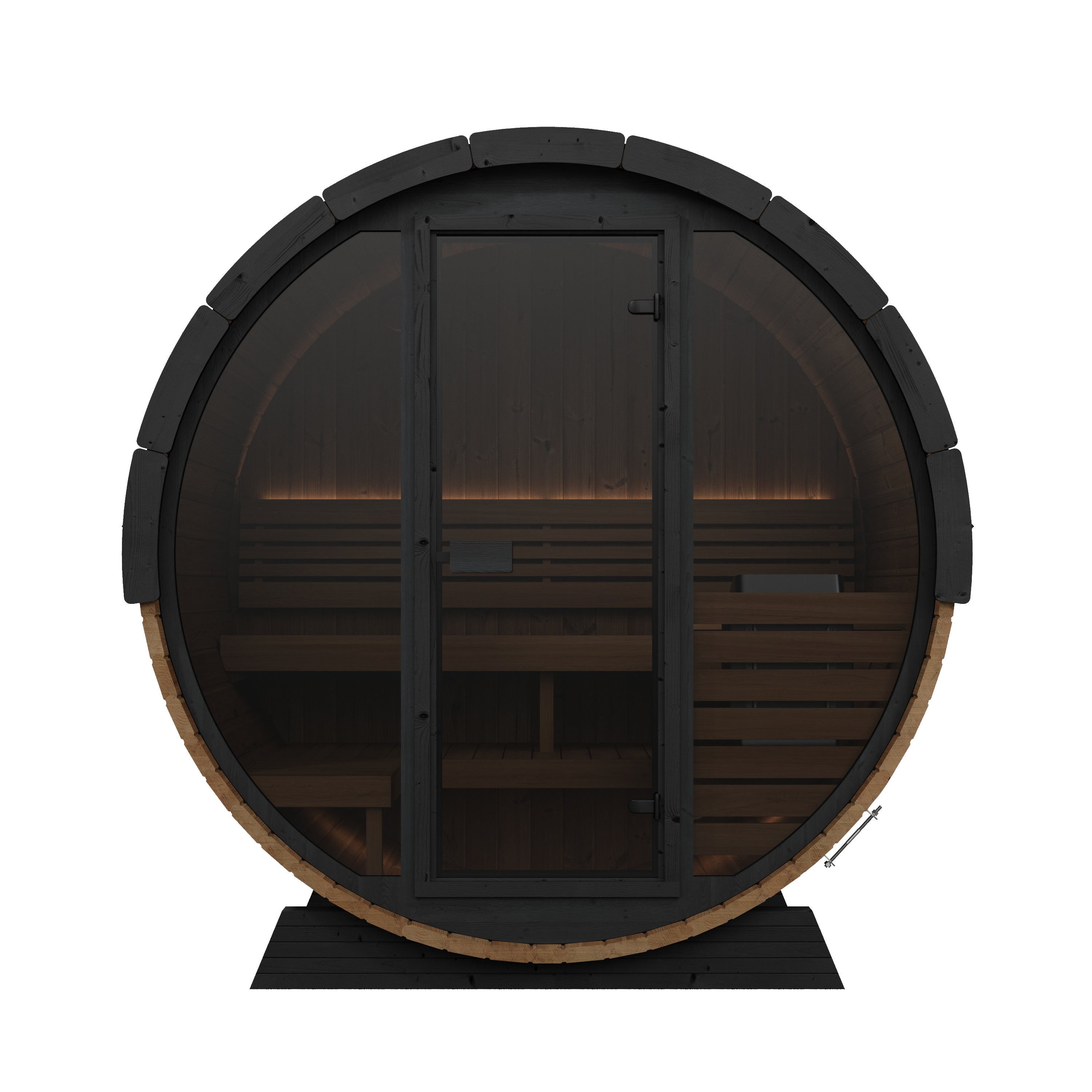

• Full bronze-tinted glass front wall
• Tempered bronze glass door
• Stainless-steel barrel bands
• Black roof shingle kit
• Black-painted spruce cradles
• Black-painted spruce fascia boards
• Integrated floor kit
• Black-painted front-frame plywood
• Air intake and exhaust vents
• Sauna heater guard
• Two additional Thermo-Spruce staves
• Fastener kit
• 16.9-ounce bottle of paraffin oil
• Installation instructions

White LED Lighting System Includes

• Two dotless white LED lights
• Wi-Fi and app-based operation
• Wireless handheld remote and mounting cradle
• 90-watt power supply
• LED driver
• 30-foot light cable
• Mounting clips and screws
• Lighting installation instructions

Optional E SCONCE+ exterior lighting and E MOOD chromotherapy packages are available separately.

Not Included Unless Added as Part of a Package

• Sauna heater
• Sauna stones
• Heater controls, sensors, or contactor box
• Electrical installation
• Foundation or site preparation
• Exterior wood preservative, stain, or finish

• Manufacturer: SaunaLife
• Model: EE6G
• Series: Ergo Elegance-Series
• Installation: Outdoor
• Sauna Type: Barrel sauna
• Capacity: Up to 4 persons
• Primary Material: Thermo-Spruce
• Bench and Backrest Material: Knot-free Thermo-Aspen
• Exterior Dimensions: 90.9"W × 63"D × 94.9"H
• Interior Dimensions: 87.4" diameter × 55.1"D
• Interior Diameter: Approximately 7'3"
• Door Dimensions: 27.2"W × 74.4"H
• Front Wall: Full bronze-tinted tempered glass
• Glass Thickness: 8mm, approximately 5/16"
• Wall Stave Thickness: 1.65"
• Bench and Backrest Thickness: Approximately 1.1"
• Bench Depth: Approximately 20.5"
• Floor: Integrated fitted floor kit
• Barrel Bands: AISI 430 stainless steel
• Band Dimensions: Approximately 1-7/8"W × 1/8" thick
• Roof: Black asphalt shingle kit
• Product Weight: 1,500 lbs (680.4 kg)
• Shipping Weight: 1,600 lbs (725.7 kg)
• Packaged Dimensions: 90"W × 44"D × 44"H
• LED Operating Voltage: 24V DC
• LED Power Supply: 90W
• Country of Manufacture: Handcrafted in Northern Europe

Compatible Sauna Heaters

The EE6G’s recommended heaters include:

• Finlandia: FIN-80 and FLB-80S
• Harvia: The Wall SW80, The Wall SWS80, Spirit SP80E, KIP80B, and KIP80W
• HUUM: DROP 9

The full-glass front increases the sauna’s effective heating requirement. Heater recommendations vary between brands because manufacturers use different room-volume calculations, stone capacities, control systems, and installation clearances. Use only a heater or complete sauna package approved for the EE6G.

Electrical Requirements

• The sauna heater requires a dedicated 240V electrical circuit in most residential installations.
• Breaker size, conductor size, disconnect requirements, and control wiring depend on the selected heater.
• Certain heaters include built-in controls, while others require a separate controller, temperature sensor, contactor box, or Wi-Fi control module.
• The included LED lighting requires access to a properly protected 120V AC receptacle for its 90W low-voltage power supply.
• All heater and lighting connections must follow the selected manufacturer’s instructions and applicable electrical codes.

A licensed electrician must determine the final circuit, breaker, conductor, grounding, disconnect, GFCI, and control requirements before installation.

Site Requirements

• Install on a flat, level, stable, and well-drained base.
• The base must support the 1,500-pound sauna plus the heater, stones, occupants, and accessories.
• Suitable bases may include a reinforced concrete pad, properly constructed deck, pavers, or another continuous load-bearing platform.
• The integrated floor does not replace the need for a properly prepared foundation.
• Maintain all heater clearances specified by the selected heater manufacturer.
• Plan an appropriate discharge location for the sauna’s dual floor drains.
• Maintain access for assembly, electrical service, drainage, ventilation, and future maintenance.
• Keep vegetation, sprinklers, standing water, and combustible materials away from the sauna.
• Treat exposed exterior wood with a suitable wood preservative following SaunaLife’s care instructions.
• Install the heater before fitting the heater guard.
• Use the heater guard only when it complies with the selected heater’s required safety clearances.

The SaunaLife EE6G ships by LTL freight because of its size and weight.

• Shipping Weight: Approximately 1,600 lbs
• Packaged Dimensions: Approximately 90"W × 44"D × 44"H
• Delivery Type: Curbside freight delivery unless another service is arranged
• Delivery Appointment: The freight carrier will generally contact the recipient to schedule delivery
• Property Access: The delivery address must be accessible to a full-size freight truck

Inspect the shipment before signing the delivery receipt. Photograph the pallet and packaging, and note any visible damage, punctures, crushing, broken glass, missing pieces, or shortages on the carrier’s bill of lading. Contact Core Human Health promptly if damage or missing components are discovered.

SaunaLife describes the EE6G as suitable for approximately one day of assembly by two capable adults. Actual assembly time varies based on experience, site conditions, weather, electrical preparation, and available assistance. Because of the sauna’s large diameter, heavy components, and full-glass façade, additional helpers or professional installation are strongly recommended.

The glass wall must be assembled on a flat, protected surface. Waterproof silicone must be applied to the designated frame grooves. Predrill required holes and never allow screws, tools, or wooden components to contact the glass.

Foundation construction, unloading beyond curbside service, movement to the final installation location, electrical work, heater installation, permits, and exterior finishing are not included unless specifically stated in the order.

Manufacturer Warranty

The SaunaLife EE6G is covered by SaunaLife’s current two-year limited residential warranty against defects in workmanship under normal conditions of use. Coverage applies to the original retail purchaser when purchased from an authorized reseller.

The warranty does not generally cover normal wear, natural wood characteristics, weathering, discoloration, improper assembly, commercial use, misuse, unauthorized modifications, or damage caused by incorrect maintenance. Installation, removal, delivery, and reinstallation labor are not covered. The sauna heater, controls, lighting upgrades, and other separately manufactured components may carry their own warranties.

Returns

Return requests must generally be submitted within 30 calendar days of purchase. The sauna must be new, unused, uninstalled, and retained in its original packaging with the pallet, manuals, hardware, and all included components.

Prior written approval and a Return Authorization number are required. The customer is responsible for return freight charges on buyer-remorse returns. Repackaging or reboxing fees may apply when the original packaging is incomplete.

Contact Core Human Health immediately regarding freight damage, broken glass, missing components, an incorrect shipment, warranty concerns, or cancellation requests. Final eligibility is subject to the complete Core Human Health Return, Refund & Cancellation Policy and SaunaLife manufacturer warranty terms.

Product Documents

• EE6G Installation Manual
• SaunaLife Care Guide
• SaunaLife Limited Warranty

Care Guidelines

• Treat exposed exterior wood with a suitable wood preservative following SaunaLife’s instructions.
• Apply the included paraffin oil to the Thermo-Aspen bench, backrest, and footrest as directed.
• Wipe seating and interior wood with a clean, damp cloth after use as needed.
• Allow the sauna to ventilate and dry thoroughly after each bathing session.
• Keep the integrated floor and both floor drains clean and unobstructed.
• Use only clean water on sauna stones unless the heater manufacturer approves another product.
• Do not clean the sauna interior with a pressure washer or running hose.
• Use only sauna-safe cleaners and avoid harsh chemicals, bleach, ammonia, or abrasive products.
• Clean the full-glass façade with a soft cloth and non-abrasive glass cleaner.
• Periodically inspect the glass frames and waterproof seals for movement, gaps, or water intrusion.
• Inspect the roof shingles, drip rails, barrel bands, door hinges, seating, vents, fasteners, and heater guard regularly.
• Check and rearrange sauna stones periodically, replacing cracked or deteriorated stones as directed by the heater manufacturer.
• Natural checking, grain variation, knots, and gradual color changes are normal characteristics of real wood and are not necessarily defects.
